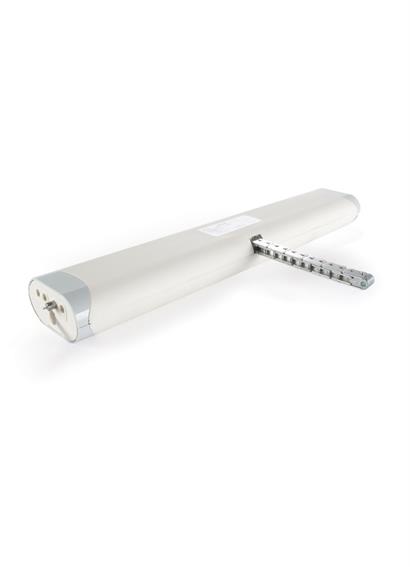

Comunello L25 Chain Actuator 380mm

From £198.05

Manufactured by Comunello

Colour

Voltage

Stroke

Brackets

L25 chain actuator suitable for most windows and lightweight roof vents. The L25 has an adjustable stroke feature allowing the user to limit the maximum opening between 200/250/380mm (3 positions).
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • White (RAL 9010), Black (RAL 9005) or Grey (RAL 7035)
STROKE OPTIONS
  • 200 / 250 / 380mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
SUITABLE FOR
  • Top-hung/Bottom hung windows, velux type centre pivot vents (25kg MAX)
  • Minimum window size = 390mm (w) x 380mm (h)
  • Maximum window size = 1200mm (w) x 2000mm (h)
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • ML25S138H0W00 (L25 230V 200-380MM WHITE)
  • ML25S138H0B00 (L25 230V 200-380MM BLACK)
  • ML25S138H0G00 (L25 230V 200-380MM GREY)
  • L25230W, L25230B, L25230G
  • Liwin Actuator

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
