Mingardi MICRO XL Chain Actuator (Discontinued)

From £424.06

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

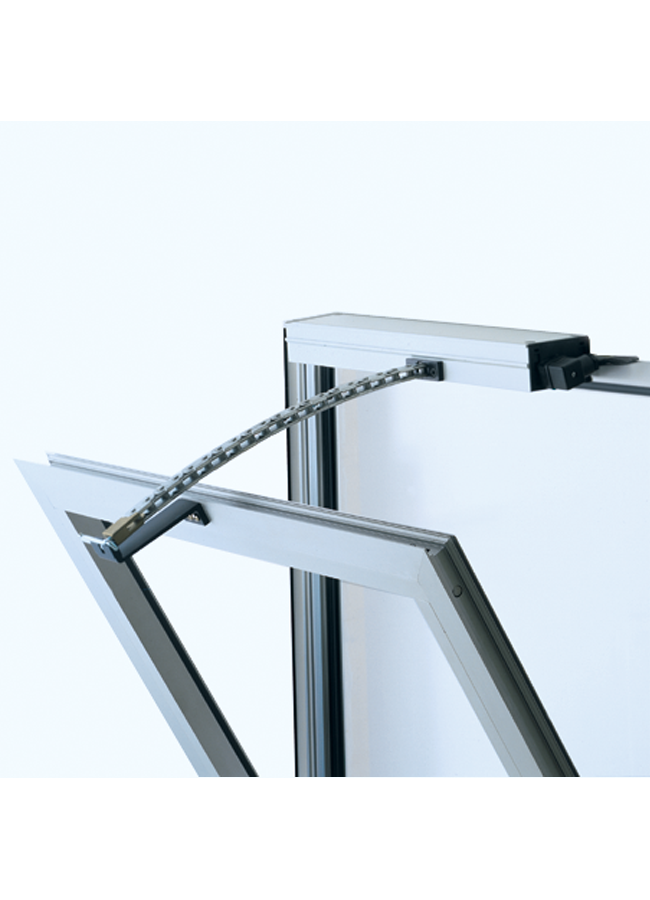

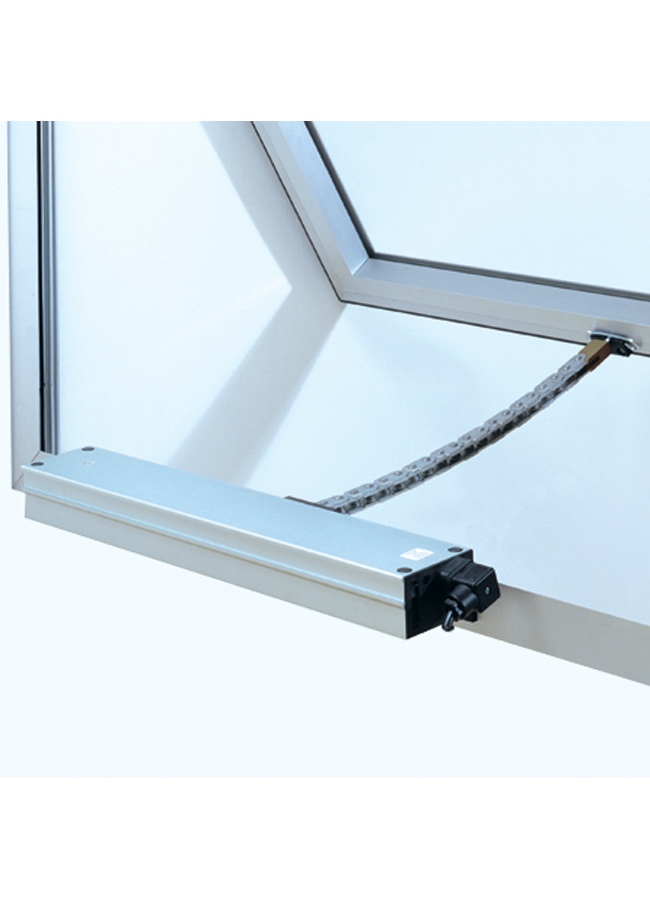

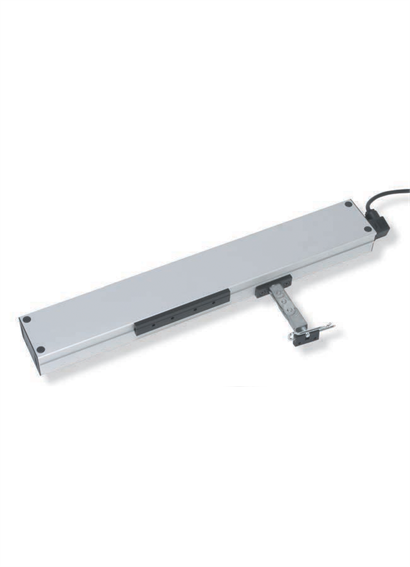

Mingardi MICRO XL AOV actuator designed for use on most windows and lightweight roof vents. With a choice of larger stroke options it makes it an ideal choice for many smoke control / AOV applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 1.0 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.0 metre is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
  • White (on request)
  • Black (on request)
STROKE OPTIONS
  • 420mm
  • 600mm
  • 835mm (24V only)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - SCU-4, WSC 204, WSC 204KP, VCS-S2
SUITABLE FOR
  • Top Hung, Bottom Hung, Side Hung, Centre Pivot windows
  • Smoke Ventilation / Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 2700056 (MICRO XL 230V 420mm Silver)
  • 2700589 (MICRO XL 230V 420mm Black)
  • 2700340 (MICRO XL 230V 420mm White)
  • 2700058 (MICRO XL 230V 600mm Silver)
  • 2700609 (MICRO XL 230V 600mm Black)
  • 2700341 (MICRO XL 230V 600mm White)
  • 2700057 (MICRO XL 24V 420mm Silver)
  • 2700599 (MICRO XL 24V 420mm Black)
  • 2700342 (MICRO XL 24V 420mm White)
  • 2700059 (MICRO XL 24V 600mm Silver)
  • 2700619 (MICRO XL 24V 600mm Black)
  • 2700343 (MICRO XL 24V 600mm White)
  • 2700623 (MICRO XL 24V 835mm Silver)
  • 2700627 (MICRO XL 24V 835mm Black)
  • 2700344 (MICRO XL 24V 835mm White)

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
