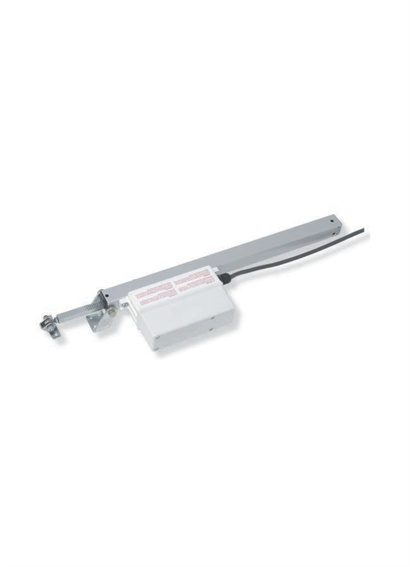

Mingardi S1 Rack Actuator (Discontinued)

From £283.90

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

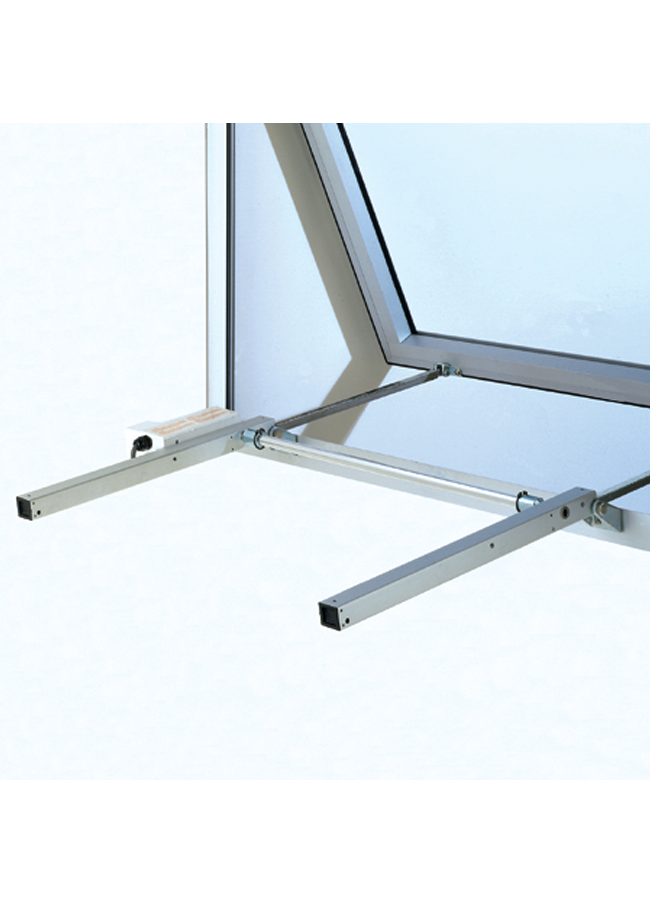

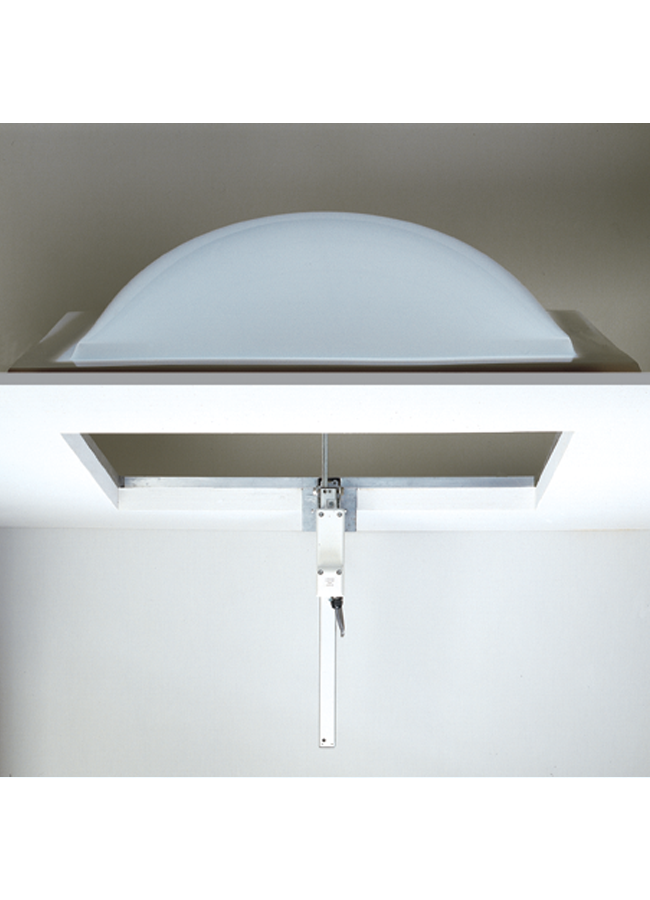

Mingardi S1 Rack Actuator is designed for opening almost any roof light or dome. With a range of stroke and voltage choices it gives the user all the options they will need.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 180mm
  • 230mm
  • 350mm
  • 550mm
  • 750mm
  • 1000mm
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Pitched/Flat roof windows or Centre Pivot windows
  • Natural Ventilation / Window Automation / Smoke Ventilation
MANUFACTURER CODE / DESCRIPTION
  • 2700073 (S1 230V Motor only)
  • 2700661 (S1 230V 180mm)
  • 2700665 (S1 230V 230mm)
  • 2700075 (S1 230V 350mm)
  • 2700672 (S1 230V 550mm)
  • 2700677 (S1 230V 750mm)
  • 2700680 (S1 230V 1000mm)
  • 2700683 (S1 24V Motor only)
  • 2700749 (S1 24V 180mm)
  • 2700750 (S1 24V 230mm)
  • 2700747 (S1 24V 350mm)
  • 2700684 (S1 24V 550mm)
  • 2700748 (S1 24V 750mm)
  • 2700751 (S1 24V 1000mm)
